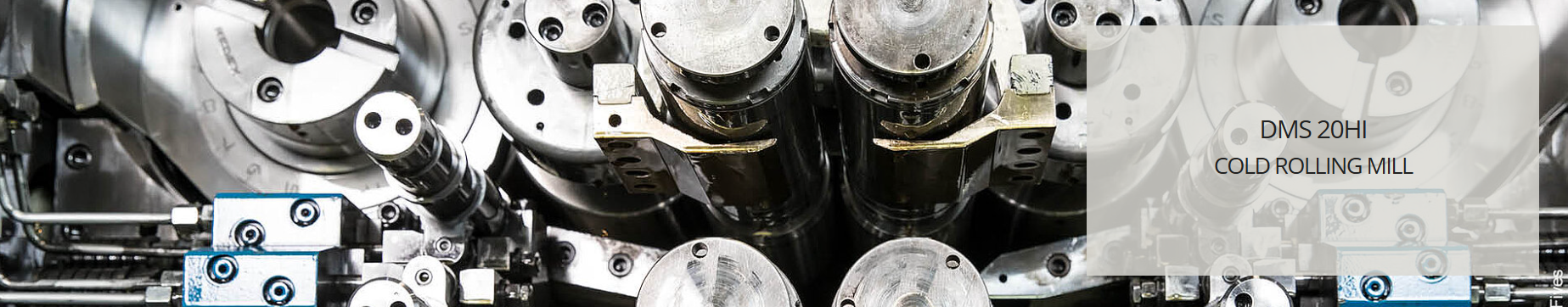

DMS 20HI COLD ROLLINGMILLS
As a world leader with more than 100 references over 70 years, our DMS 20Hi cold rolling mills exceed expectations to process stainless or electrical steels with ultimate surface quality standards. The mill can be equipped with a RollBotTM automatic roll change (link to Fives DMS 영문 2-4) for quick and safe maintenance.
DMS 20HI MILLS
Fives' proprietary equipment – DMS 20Hi EcoMill – is capable of rolling strips down to minimum thickness while maintaining surface quality and flatness. Its improved features and unique design allow steelmakers to set a new standard of performance that has never been reached before.
BENEFITS
- 10% increase in productivity
- Less energy consumption
- Less maintenance
- Ease of operation
- Overall reduced environmental impact
HIGH-END APPLICATIONS
ELECTRICAL STEEL
DMS 20Hi EcoMill is applicable to non-grain oriented (NGO) and grain oriented (GO) electrical steels with high permeability (HiB). Both split housing and monobloc mills are available to offer steelmakers customized and flexible solutions to fit their operations and maintenance practices.
WORLD RECORDS:
- Minimum strip thickness: 0.1 mm
- Maximum strip width: 1,380 mm
- Maximum rolling speed: 1,000 mpm
STAINLESS STEEL
DMS 20Hi EcoMill for stainless steel features advanced strip cooling and flatness control systems to ensure increased rolling speed, maximum strip width and minimum thickness.
WORLD RECORDS:
- Minimum strip thickness: below 30 microns
- Maximum strip width: 1,880 mm
- Maximum rolling speed: 1,200 mpm
(UHSS)
(ULTRA HIGH-STRENGTH STEEL)
Fives’ expertise in cold rolling enabled us to be the first to design a robust monobloc - DMS 20Hi EcoMill - for thin GIGA steel for POSCO. This breakthrough technology is capable of producing high-strength and formable steel for the automotive industry.
PROVEN RESULT:
- Steel thickness: 0.5 mm - 2.5 mm
- Strip width: 800 mm - 1,650 mm
- Production capacity: 180,000 tons per year
